Product Summary


AccuWrap™ High-Speed Wipe Down Shrink Wrapper
Standard or Inverted
General Applications


Model: BA-2000S


Description

The AccuWrap BA-2000S is a multi-axis, servo-controlled, wrapper designed for high-speed, high-efficiency, and easy maintenance. The BA-2000S is designed to the “no particle trapping” criteria, allowing food particles to fall through; however, it features stainless-steel construction only where food will contact wrapper components. The wrapper therefore accommodates wet wipe down of all conveyors and sealing sections.

The modular construction allows removal of all modules providing the maximum in accessibility, enabling an even more thorough spill clean up or for expedient changeover and versatility for future business requirements. Rails lift up; conveyor belts snap out; conveyors slide out; the former is fast change; and even the fin wheels are modular.




Featuring Allen-Bradley® controls for superior performance, the system provides independently adjustable servo control of longitudinal film travel for the in-line seal, main cross-sealing with rotary hot knife, conveyors and unwind, all of which provide the ultimate in control for packaging production. Over 100 recipes for touch screen retrieval make product changeovers as easy as selecting your favorite TV channels. Product position monitoring for Out Of Position/No Cut and No Product/No Bag means more good packages ready to ship.

The modular design, wipe down capability, and small footprint make the system ideal for both general-purpose and some food packaging applications.

Building-Block Modularity™

The BA-2000S AccuWrap™ Wipe Down Wrapper is designed and build utilizing GGA Packaging's Building-Block Modularity, which is the basic modular design philosophy of our packaging systems. It provides you with a machine that has value, both now and in the future.


Top of Page

Exclusive Features

  • • Building-Block Modularity™ for easy
       cleaning and plug-in application
       versatility
  • • Open construction for limited food
       particle trapping
  • • Advanced electronics for production
       compatible operation
  • • Full color touch screen for easy
       operator interface
  • • On-screen and remote diagnostics
       to reduce downtime
  • •  Bottom static lap seal for standard
       polyethylene shrink film
  • • Servo-controlled sealing head for
       high accuracy seal placement
  • • 1-up servo end seal head with
       hot knife
  • • Up to 300 cycles per minute for
       high-speed packaging
  • • Film widhts up to 36" for large
       range of products
  • • Small footprint for space efficiency

Additional Features

  • • Stainless-steel construction where
       food would contact wrapper
       components for wipe-down cleaning
  • • Modular assemblies for expedient
       configuration change and plug-
       in versatility
  • • Product position monitoring for
       Out-of-Position/No Cut and No
       Product/No Bag
  • • Allen-Bradley® controlLogix
        standard
  • • Third-level multi-axis servo system
       to independently optimize all
       functions
  • • Full color touch screen for easy
       operator interface
  • • On-screen and remote system
       monitoring with diagnostics to
       reduce down time
  • • Precision cut and seal with servo-
       controlled crimper for high accuracy
  • • Powered Seated Surface Unwind for
       the ultimate in web control
Top of Page


Options

  • • Servo-controlled 12" to 32",
       or up to 16" wide film
  • • UL Approval or CE Mark option
  • • 1- or 2-up cross cut
  • • Straight cut or hot
       wire knife
  • • Fin, static lap, or thermal lap seal
  • • Adjustable 1 belt for narrow
       web for 5'
  • • Adjustable 2 belt for wide
       web for 5'
  • • Saw tooth under fin feed
       chain option
  • • Conveyor section
  • • Flight spacing
  • • Single or double powered unwind
  • • Single or double powered unwind
       overhead (narrow only)

Technical Data

  • • Electrical: 230 VAC, three-phase,
       50/60 Hz (isolation
       transformer recommended)
  • • Current: Approximately 40 Amps
  • • Compressed Air: 1 cfm @ 80 PSIG
  • • Speed: up to 300 cycles per minute
       (2,000 linear inches per minute)
  • • Basic footprint: 13’ x 5’

BA-2000S Forming box and infeed BA-2000S infeed, forming box, and crimper BA-2000S Wrapping tube formed from shrink film

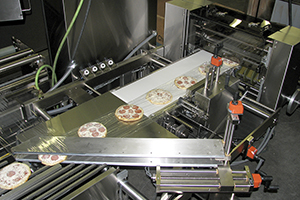

BA-2000S Forming box and infeed

BA-2000S infeed, forming box, and crimper

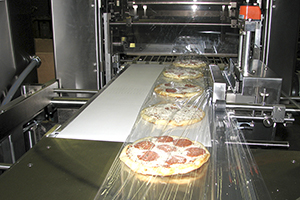

Wrapping tube formed from shrink film

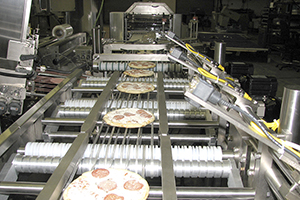

BA-2000S outfeed

BA-2000S outfeed

FG-2000S Line Drawing     Top of Page
